| Display |
| LCD Size |
15" |
| Display Type |
TFT LCD |
| Resolution |
1024 X 768 |
| Pixel Pitch |
0.297mm(H) X 0.297mm(V) |
| Luminance |
250 cd/m2 |
| Contrast Ratio |
600 |
| Viewing Angle |
80(U), 80(D), 80(L), 80(R) |
| Response Time |
4ms |
| Backlight |
LED |
| Touch |
| Touch Screen |
5-wire Resistive |
| Light Transmission |
81% ↑
(550nm wavelengtd optimized for flat-panel displays) |
| Touch Interface |
USB |
| Touch Life |
More tdan 30 million touches in a single location |
| Environment & Mechanical |
| Mounting |
Panel Mounting (LUG) |
| Power Input |
AC 100-240V~50/60Hz |
| Power Output |
DC24V/6.25A(150W) |
| Operating Temperature |
0℃~60℃ |
| Storage Temperature |
-20℃~70℃ |
| Operating Humidity |
0%~90% relative humidity, non-condensing |

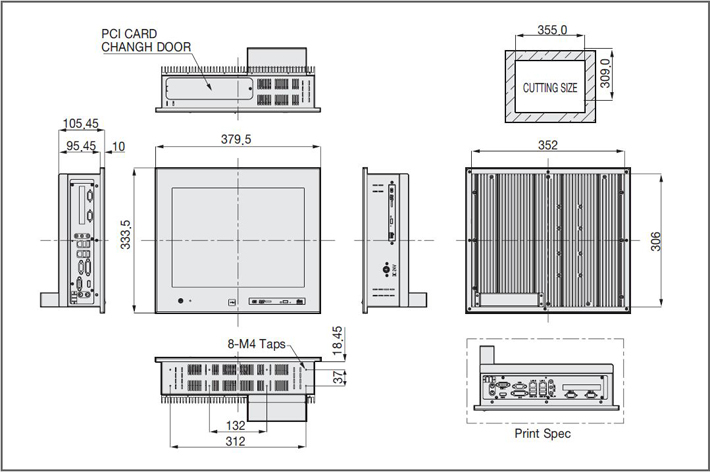

| Dimension(WxDxH) |
379.5x333.5x105.5(355x309) |
| Weight |
8 kgs |

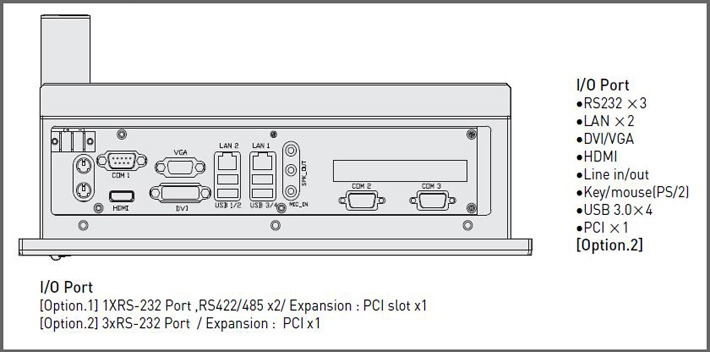

| I/O |
| Serial Port |
[Option.1] 1x Rs-232, 2x RS422/485, 1x PCI
[Option.2] 3x Rs-232, 1x PCI |
| Etdernet |
LAN1 ? Intel 82579LM Gbe Lan supports iAMT 8.0
LAN2 ? Intel 82583V Gbe Lan |
| USB Port |
USB x 6(Front 2xUSB 2.0, I/O 4x USB 3.0) |
| HDMI |
HDMI 1.3 support max resolution 1920x1200 |
| Mouse & K/B |
1 x PS/2 Keyboard & Mouse |
| Audio Interface |
1 x Mix in, 1 x Line in, (CD Audio in), 1 x Line out |
| DVI |
1 X DVI-D |
| System |
| CPU |
Intel Core i7/i5/i3 Pentiumⓡ/ Celeronⓡ Mobile CPU |
| BIOS |
AMI 64Mb SPI ROM |
| System Chipset |
Intel QM77 |
| I/O Chipset |
Nuvoton NCT6776F |
| System Memory |
Two 204-pin SODIMM support up to 16GB dual
channel DDR3 1600/1333 SDRAM, Non-ECC |
| HDD/SSD |
SSD Flash Disk 128G note) |
|
Optional |
| Display Chipset |
Intel GMA HD 4000/2500(22nm), 3000/2000(32nm) |
| Display Memory |
Shared Memory, up to 256MB |
| Audio Code |
Realtek ALC892, 5.1 Channel HD Audio |
| DVD-ROM DRIVE |
DVD multi Recorder |
